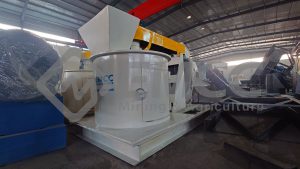

HIGH MOISTURE FERTILIZER CRUSHER MACHINE

Home / News / Blog

The crushing of high moisture materials has always been a headache for major crushing plants, because most of the materials will be blocked on the screen and it is easy to burn the motor. Therefore, there is an urgent need for a device that can pulverize high moisture materials to solve this problem.
Don’t worry, this is coming soon – high moisture materials crusher, this high moisture materials crusher is upgraded from the old-fashioned crusher, and it has a very good crushing effect on high-moisture materials like straw.

1.The machine can be divided into three parts:
(1). Frame part: The normal operation of all machinery is inseparable from a solid frame.In order to achieve the purpose of using this machine, the machine frame is all welded with high-quality carbon steel plate and channel steel, and has passed strict product qualification certification and specific process requirements.
(2). Rotor crushing part: The rotor of this machine is novel in structure and reasonable in design. It adopts double-layer blade crushing, and the crushing effect is twice that of other products. The material enters the crushing chamber from the feeding port, and is continuously ground by the double-layer blade to make the material meets the granulation requirements.
(3). Transmission connection part: The machine adopts flexible belt transmission. The pulley and belt are driven by the motor, and are directly transmitted to the main shaft, so that the main shaft rotates at a high speed to achieve the crushing effect.
2.Structural features:
(1). The high moisture materials crusher adopts two-stage pulverization. After the material is pulverized by the cutting disc on the rotor disc, it is transported to the pulverizing chamber for secondary pulverization with hammers, and finally discharged from the discharge port.
(2). The high moisture materials crusher is not designed with a screen bottom, so it will not be blocked due to wet material pulverization, which will burn out the motor and affect production.
(3). The high moisture materials crusher adopts high-alloy wear-resistant hammer, and the hammer is made by forging, which is particularly strong and wear-resistant, which is stronger and more wear-resistant than ordinary hammer, which increases the service life of the hammer.
(4). The high moisture materials crusher adopts two-way clearance adjustment technology. If the hammer is worn, it does not need to be repaired. It can continue to be used by adjusting the position of the hammer.
(5). The high moisture materials crusher can be easily operated by only one person, which is not only safe and reliable, but also easy to maintain.
