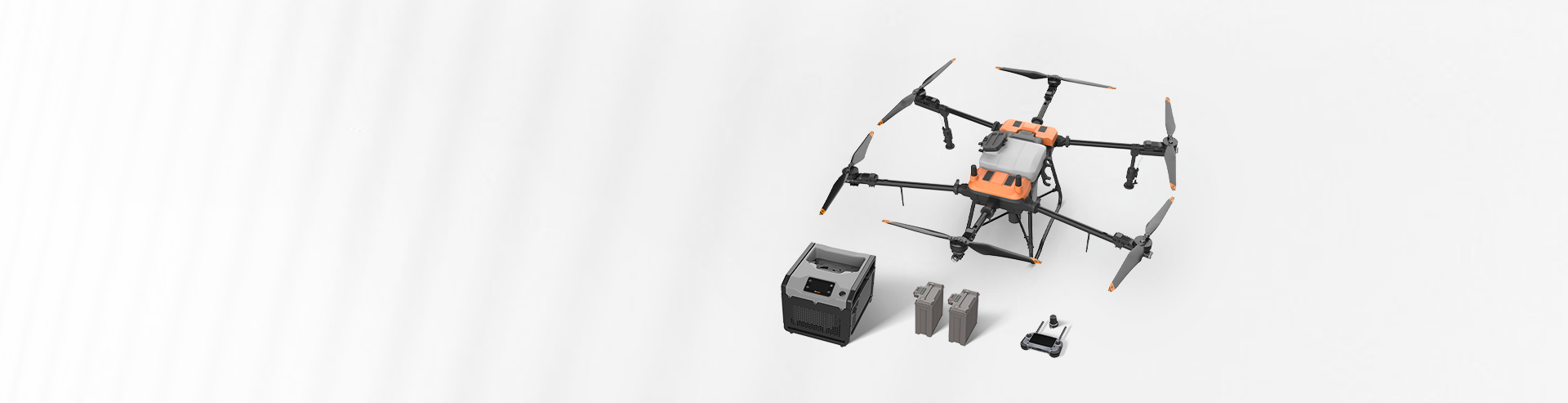

EMCC Agricultural Drone

EMCC agricultural drone is a versatile tool that combines spraying, sowing, and lifting functions to make farming tasks easier and more efficient. Equipped with a strong propulsion system and an advanced energy setup, it delivers over 300 kg of thrust. With carbon fiber propellers and an 18S high-voltage platform, it’s built to handle heavy loads with ease.

FEATURES

High Flow Rate High Precision

40-70L Spraying Tank
28-40L/min Maximum flow rate

Six-axis design

Six – axis design and reinforced
Aircraft body material and structure for stable flight

High payload High Efficiency

60-80L spreading tank
110-300kg/min spreading speed

360°rotating radar

easily accomplish obstacle avoidance, circumvention and terrain following

Agricultural UAV Models

Optional accessories

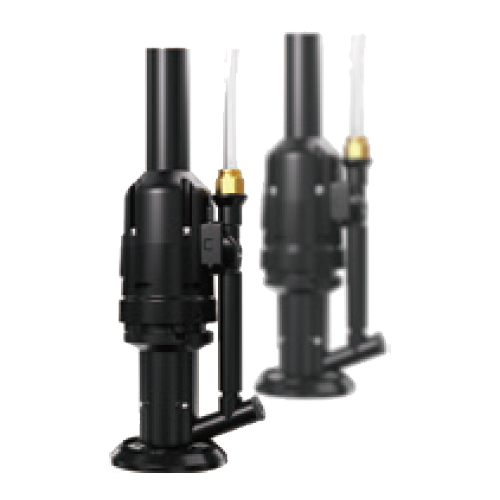

Four centrifugal nozzle upgrade package

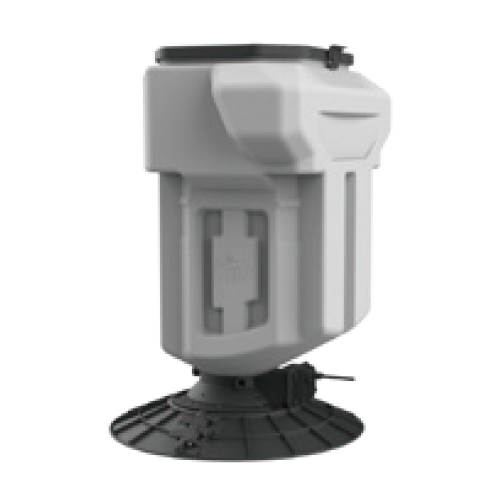

Spreader

Core parameters

Peticide tank capacity: 25 L

Maximum take-off weight: Spraying: 66 kg / Spreading: 66 kg

Maximum spray width: 8 m

Empty weight: 41 kg (including battery)

Maximum flow rate: 20 L / min

Maximum load: 25 kg

Spreader tank capacity: 30 L

Unfolded dimensions: 2318×2685×745 (mm)

Maximum spread volume: 105 kg / min

Transport dimensions

Optional accessories

Spreader

Core parameters

Peticide tank capacity: 40 L

Maximum take-off weight: Spraying: 88 kg / Spreading: 97 kg

Maximum spray width: 10 m

Empty weight: 48.7 kg (including battery)

Maximum flow rate: 2 nozzles: 12 L / min; 4 nozzles: 14 L / min

Maximum load: 50 kg

Spreader tank capacity: 60 L

Unfolded dimensions: 2152×2080×930 (mm)

Maximum spread volume

Transport dimensions

Optional accessories

Four centrifugal nozzle upgrade package

Spreader

Core parameters

Peticide tank capacity: 40 L

Maximum take-off weight: 99 kg

Maximum spray width: 10 m

Empty weight: 49 kg (including battery)

Maximum flow rate: 2 nozzles: 18 L / min; 4 nozzles: 28 L / min

Maximum load: 50 kg

Spreader tank capacity: 60 L

Unfolded dimensions: 2165×2080×880 (mm)

Maximum spread volume

Transport dimensions

Optional accessories

Four centrifugal nozzle upgrade package

Spreader

Core parameters

Peticide tank capacity: 70 L

Maximum take-off weight: Spraying: 140 kg / Spreading: 150 kg

Maximum spray width: 12 m

Empty weight: 68 kg (including battery)

Maximum flow rate: 2 nozzles: 28 L / min; 4 nozzles: 40 L / min

Maximum load: 80 kg

Spreader tank capacity: 100 L

Unfolded dimensions: 3305×3577×850 (mm)

Maximum spread volume: 300 kg / min

Transport dimensions

Multi-System Support

Spraying System, Sowing System, Remote Control
