EMCC Auto Steering System

EMCC Auto Steering System utilizes advanced high-precision GNSS positioning, and automated control technologies to optimize agricultural operations. This system ensures centimeter-level accuracy, significantly improving operational efficiency, land utilization, and resource management. By reducing manual labor requirements and operational costs, it is ideal for a wide range of applications, including ridging, plowing, pesticide spraying, and sowing.

FEATURES

Satellite-based differential

Applicable to PPP (Free) and PPP-AR (High Precision)

Automatic U-Turn

Supports One-Button U-Turn and Automatic U-Turn

ISOBUS

Supports UT/TC and Compatible with Leading Agricultural Equipment Brands

30min

Easy Installation in 20 Minutes Quick Calibration in 10 Minutes

Auto Steering System Models

Optional accessories

Portable mapping device

Multi-function wire control handle
Special version of rice transplanter
Satellite leveling system expansion pack
Core parameters

Terminal size: 287×187×48 (mm) 10.1-inch LCD screen

ISOBUS: Support

Operation accuracy: ±25cm/km

Satellite receiver type: Unicore  UM482/ Support BDSB1/B2GPSL1/L2, GLON-ASSL1/L2, Galile0 E1/E5b four-system eight-frequency signal

Operation speed range: 0.1–28 km/h

Weight

Protection level: IP67

Transport dimensions

Optional accessories

Portable mapping device

Multi-function wire control handle
Hydraulic valve
Gyroscope angle sensor
Implement controller
Implement guidance device
Core parameters

Terminal size: 12.8inches

ISOBUS: Support

Operation accuracy: ±25cm

Satellite receiver type: GPS: L1C/A, L1C, L2C, L2P, L5C, GLONASS: L1OF, L2OF, L3OC     BeiDou: B1I, B2I, B3I, B2a, B2b, Galileo: E1, E5a, E5b, E5AltBOC, E6    QZSS: L1 C/A, L1C, L2C, L5C    SBAS: L1 C/A, L5    IRNSS: L5, L-Band

Operation speed range: 0.1–28 km/h

Weight

Protection level: IP67

Transport dimensions

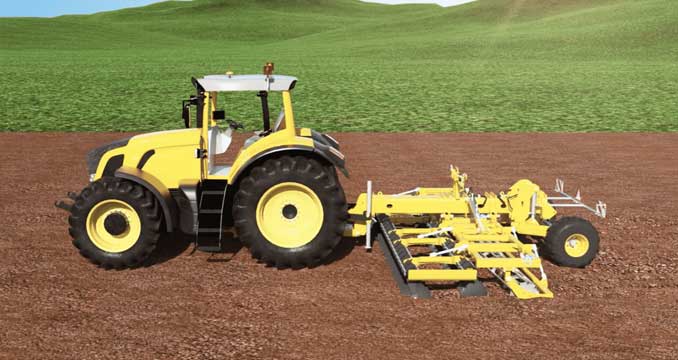

2.5cm row-turning accuracy

Auto Steer System combines GNSS and RTK to guarantee a 2.5cm row-turning accuracy on all kind of application scenario

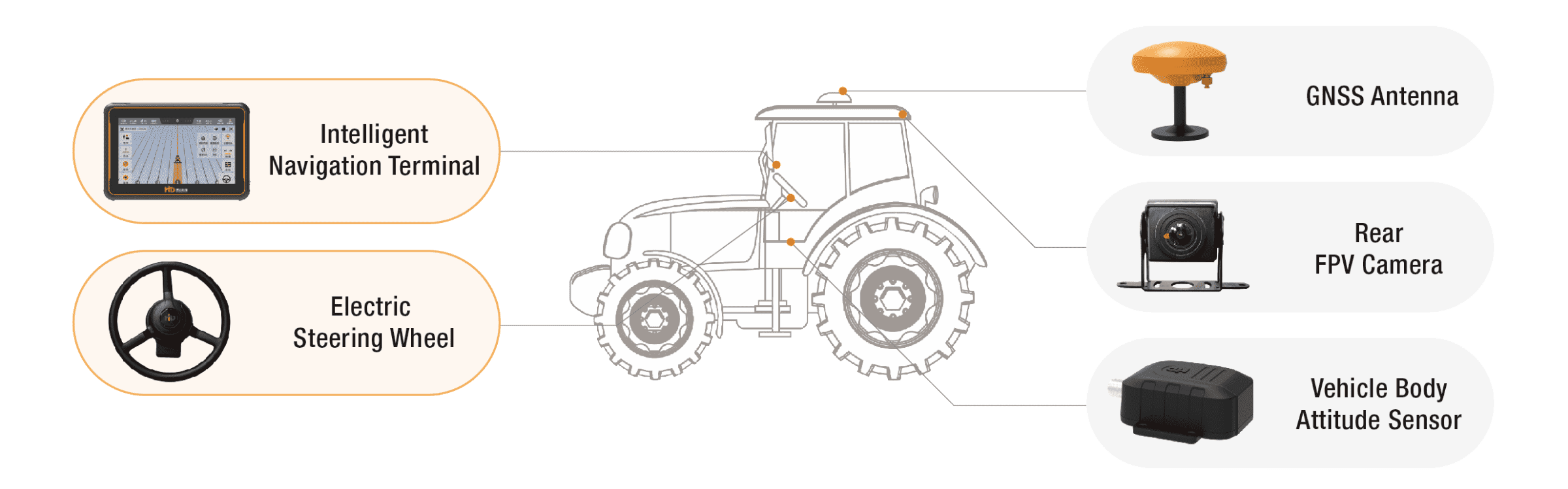

High System Integration

The system adopts an integrated controller solution, simplifying the installation of components and wiring.
Structural parts are pre-assembled at the factory, making on-site installation more convenient.
The entire unit is IP67 dustproof and waterproof, with a 50% improvement in overall system reliability compared to the previous generation.

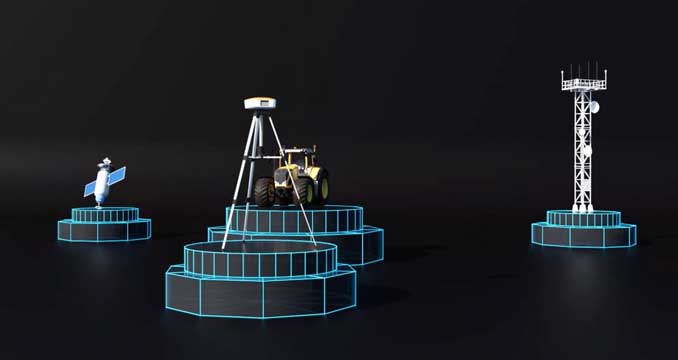

Three-Dimensional Signal Assurance

Supports receiving differential signals via wireless networks, radio stations and direct satellite connections, ensuring high-precision operation under various environmental conditions

Hydraulic Steering

Hydraulic steering allows the vehicle to maintain its original steering wheel while reducing steering response time. This system integrates seamlessly with the vehicle’s existing hydraulic steering system, without requiring any modifications to the steering wheel.
It enables drivers to easily control the smart driving features, enhancing the overall driving experience.

Rich Operation Modes

The system offers a variety of navigation modes including AB straight line, A+ straight line, parallel curve, adaptive curve, and circular curve. Additionally, the new cross-plowing mode includes a forward plowing path, meeting the needs of different types of operations

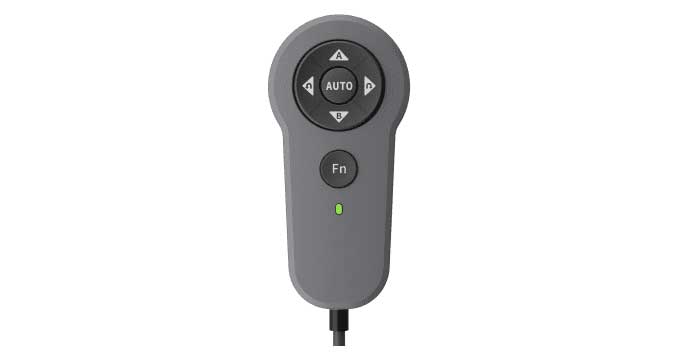

Multi-Function Wired Control Handle

When used with the multi-function wired control handle, it effectively alleviates driver fatigue caused by frequent screen tapping. The handle offers various customizable button functions, including automatic start/stop, route dragging, route following, one-click U-turn, and one-click new task creation. Users can customize the control combinations based on their operating habits
